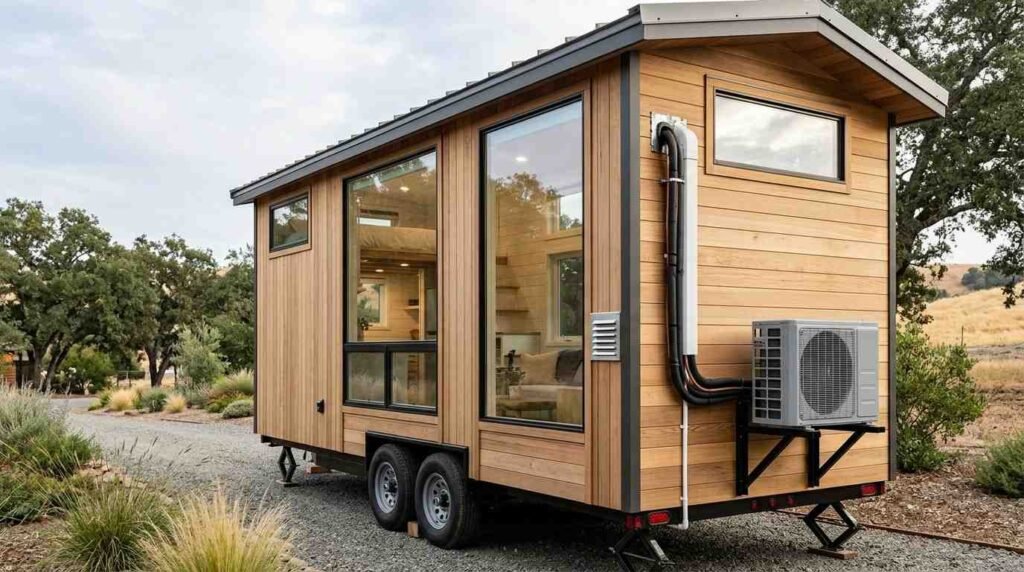

HVAC for a tiny home on wheels is a climate control system sized for a mobile, tightly built structure under 400 square feet, combining heating, cooling, and mechanical ventilation. I build these homes for a living, and comfort fails here faster than in any house.
The volume of air is tiny, so a single wrong equipment choice swings your temperature ten degrees in minutes. Moisture builds fast. Bad decisions cost you comfort, energy, and sometimes the wall assembly itself.
This guide walks through system definitions, sizing math, heating and cooling options, ventilation, envelope quality, power supply, California codes, install standards, real costs, and how to vet a builder.
What HVAC Means Inside a Tiny Home on Wheels
HVAC stands for heating, ventilation, and air conditioning. In a tiny home on wheels, those three functions get compressed into a space where a standard residential system would be laughably oversized. I treat the whole home as one thermal zone with one air volume.
That single-zone reality changes everything about equipment selection.
How Tiny Home Climate Control Differs From Standard Residential HVAC
A 2,000 square foot house has thermal mass, multiple zones, and duct runs that buffer temperature swings. A tiny home has none of that. The interior air volume in a 24 foot build sits around 1,800 cubic feet, which means the entire atmosphere of the home cycles through your equipment in minutes.
We also design for movement. Road vibration, highway wind loads, and elevation changes all act on equipment that a stationary house never subjects to stress. Mounting, sealing, and drainage details carry more weight than raw equipment specs.
The Three Jobs Every Tiny Home System Must Handle: Heat, Cool, Ventilate
Heating and cooling get all the attention. Ventilation gets ignored, and that is the single most common failure I encounter in tiny homes built by others.
A tight envelope with no mechanical ventilation traps cooking moisture, shower moisture, and human respiration inside a space that cannot absorb it. Two people breathing release roughly a gallon of water vapor per day. In a small, sealed box, that water lands on your windows and inside your walls.
So I plan all three functions together, on paper, before framing starts.
Why Envelope Quality Decides System Size
Your insulation and air sealing package determines how small your heating and cooling equipment gets to be. A leaky tiny home needs a big heater that short cycles. A tight one runs comfortably on a fraction of that capacity.
I look at three envelope numbers before I spec any equipment: assembly R-value, air changes per hour at 50 pascals, and window solar heat gain coefficient. Those three drive the load calculation. Everything downstream follows from them.

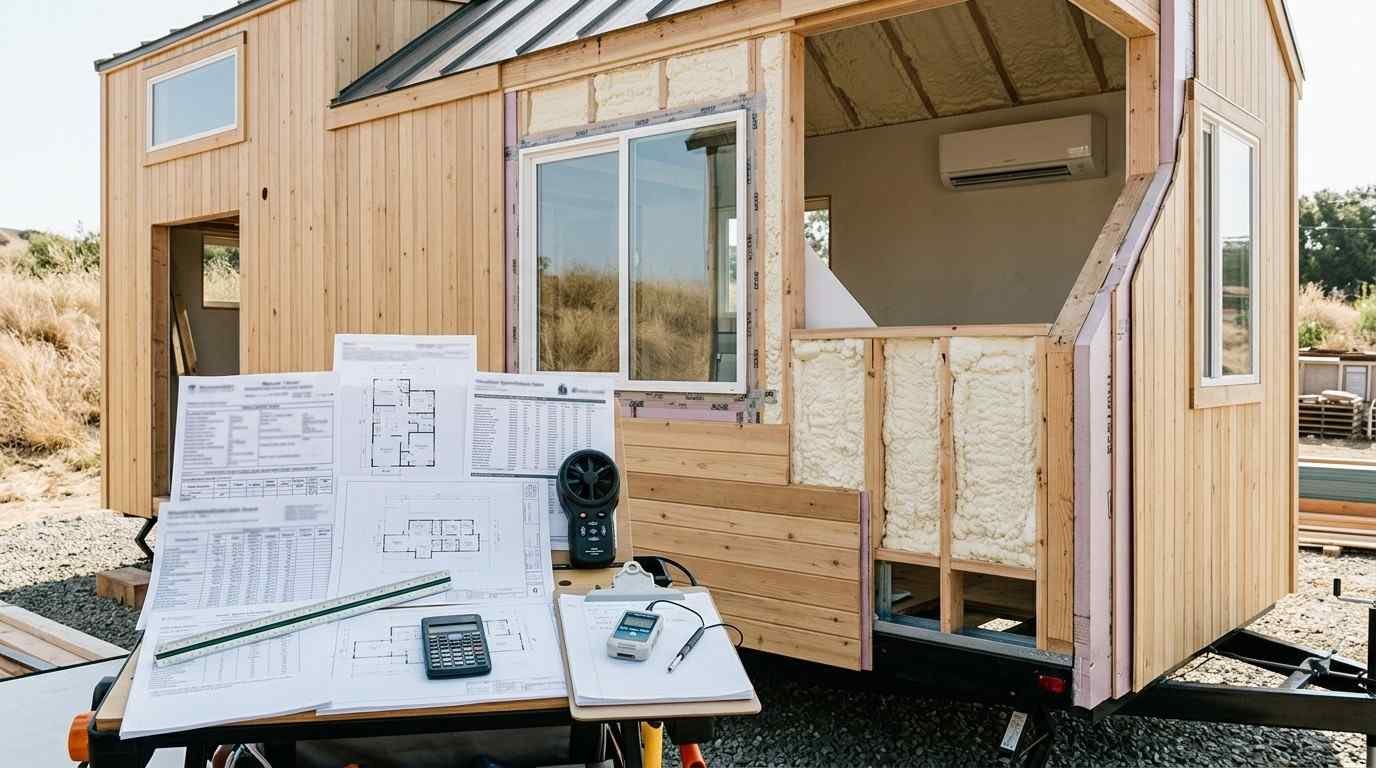

Load Calculation and Sizing for a Home Under 400 Square Feet
Sizing is where most tiny home HVAC decisions go wrong. The instinct is to buy big for safety, and that instinct produces uncomfortable, humid, expensive homes.
Manual J Thinking Applied to a Trailer-Mounted Structure
Manual J is the ACCA residential load calculation standard that HVAC professionals use to size equipment. I run a modified version for every tiny home, accounting for the trailer chassis as a thermal bridge and the high surface-area-to-volume ratio of a narrow box.
A well built 24 foot tiny home in a mild California climate typically lands between 4,000 and 9,000 BTU per hour of heating load. That is a fraction of what a single room of a conventional house demands.
The Oversizing Problem: Short Cycling, Humidity, Wasted Cost
An oversized system satisfies the thermostat in three minutes, shuts off, and repeats all day. That cycle never runs long enough to pull moisture out of the air, so the home feels clammy at 72 degrees.
Short cycling also wears compressors and wastes electricity. The U.S. Department of Energy notes that properly sized equipment delivers better comfort and lower operating cost than oversized alternatives. I size to the calculated load, not to the catalog’s smallest convenient number above it.
Climate Zone Inputs Across California
California spans 16 building climate zones under the California Energy Commission’s Title 24 framework. A tiny home parked in Redding faces triple-digit summers. The same home in Eureka faces fog, damp, and almost no cooling load.
I ask where the home lives before I spec anything. A single design does not serve both.
Heating Options for Tiny Homes on Wheels
Heating is the decision homeowners agonize over most, and for good reason. It drives your fuel dependency, your off-grid capability, and your monthly cost.

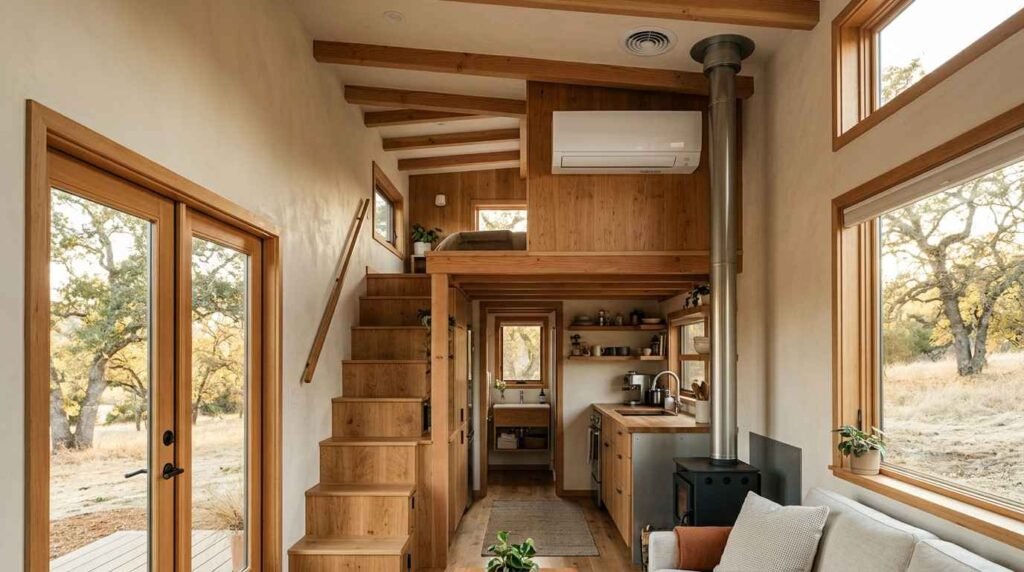

Mini Split Heat Pumps
A ductless mini split heat pump is my default recommendation for most California tiny homes. One wall-mounted indoor head paired with a small outdoor condenser handles both heating and cooling from a single electrical circuit.
Modern cold-climate models maintain useful output well below freezing, and the DOE reports high-efficiency heat pumps cut heating electricity use by roughly 50% compared to electric resistance. The smallest residential units start around 6,000 BTU, which still overshoots some ultralight builds.
Electric Resistance Heaters and Radiant Panels
Electric resistance heat is cheap to install and simple to wire. A 500 watt panel heater or a small toe-kick unit costs under a few hundred dollars and needs no refrigerant, no outdoor unit, and no condensate drain.
The tradeoff is operating cost. Every watt in produces exactly one watt of heat, so you pay full electric rates for every BTU. I use these as backup or as primary heat only in very mild coastal zones with excellent envelopes.
Propane Furnaces and Direct Vent Heaters
Propane heaters give you heat with zero grid dependency, which matters for off-grid parking. Direct vent and sealed combustion models draw combustion air from outside and exhaust outside, keeping byproducts out of your living space.
I never install unvented propane heaters in a tiny home. They dump water vapor and combustion gases directly into the smallest, tightest air volume you own. Sealed combustion with proper venting is the only version I put in a home I build.

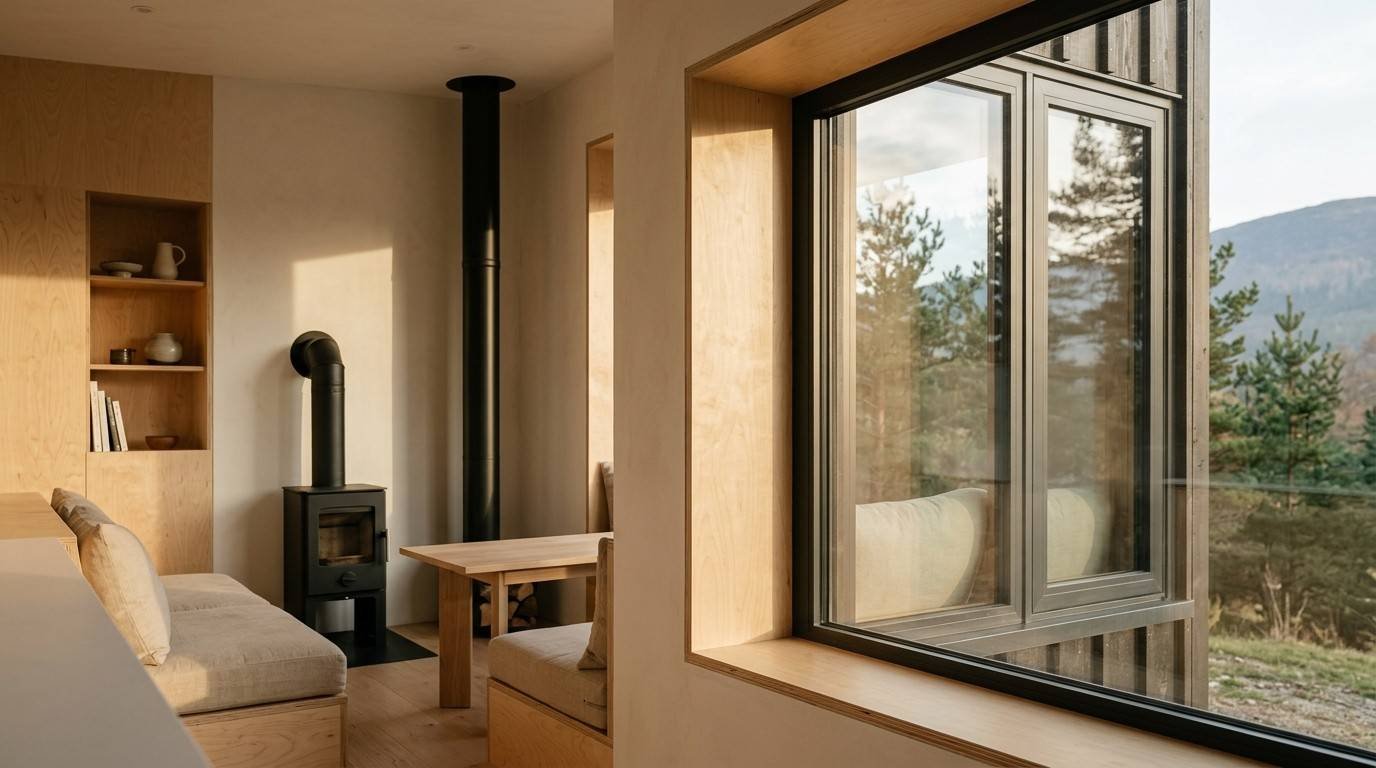

Wood Stoves and Marine Stoves
A small marine or tiny-home wood stove delivers dry, radiant heat and works with zero electricity. The aesthetic appeal is real, and so is the operational demand.
Clearances eat floor space. You need a proper hearth pad, listed wall shields, a Class A chimney through the roof, and a fresh air supply. Output also runs high for the space, so overheating is common. This works beautifully for the right owner and poorly for everyone else.
Hydronic and Radiant Floor Heat
Radiant floor heat feels excellent underfoot and distributes evenly. In a tiny home, the floor cavity is shallow and sits directly above a steel trailer, so insulation below the tubing becomes critical.
Hydronic systems add a pump, a heat source, a manifold, and glycol for freeze protection. That is a lot of components in a space with no mechanical room. I install these when a client specifically wants radiant comfort and accepts the complexity.
Cooling Options and Humidity Control
Cooling loads in California tiny homes vary wildly by region. Inland valleys demand real capacity. Coastal parking often needs dehumidification more than temperature reduction.
Ductless Mini Splits as the Default Cooling Choice
The same mini split that heats your home cools it. That dual function is why I recommend it so consistently. Variable-speed inverter compressors modulate down to match small loads instead of cycling on and off.
Long runtime at low output is exactly what pulls humidity out of the air. That is the comfort advantage over any on/off system.
Window, Portable, and Rooftop RV Units
Window units cost the least and install in an afternoon. They also block a window, leak air around the sleeve, and produce noise inside your only room.
Rooftop RV air conditioners handle travel well and mount cleanly for road use. They run loud, draw significant amperage, and add roof penetrations and weight up high. I specify them for homes that move frequently, not for stationary living.
Dehumidification and Coastal Moisture Loads
Along the California coast, indoor relative humidity climbs even when temperature stays comfortable. The EPA recommends keeping indoor relative humidity between 30% and 50% to control mold growth.
A small standalone dehumidifier solves this cheaply. I size it to the space and plumb the condensate to drain so nobody empties a bucket daily.

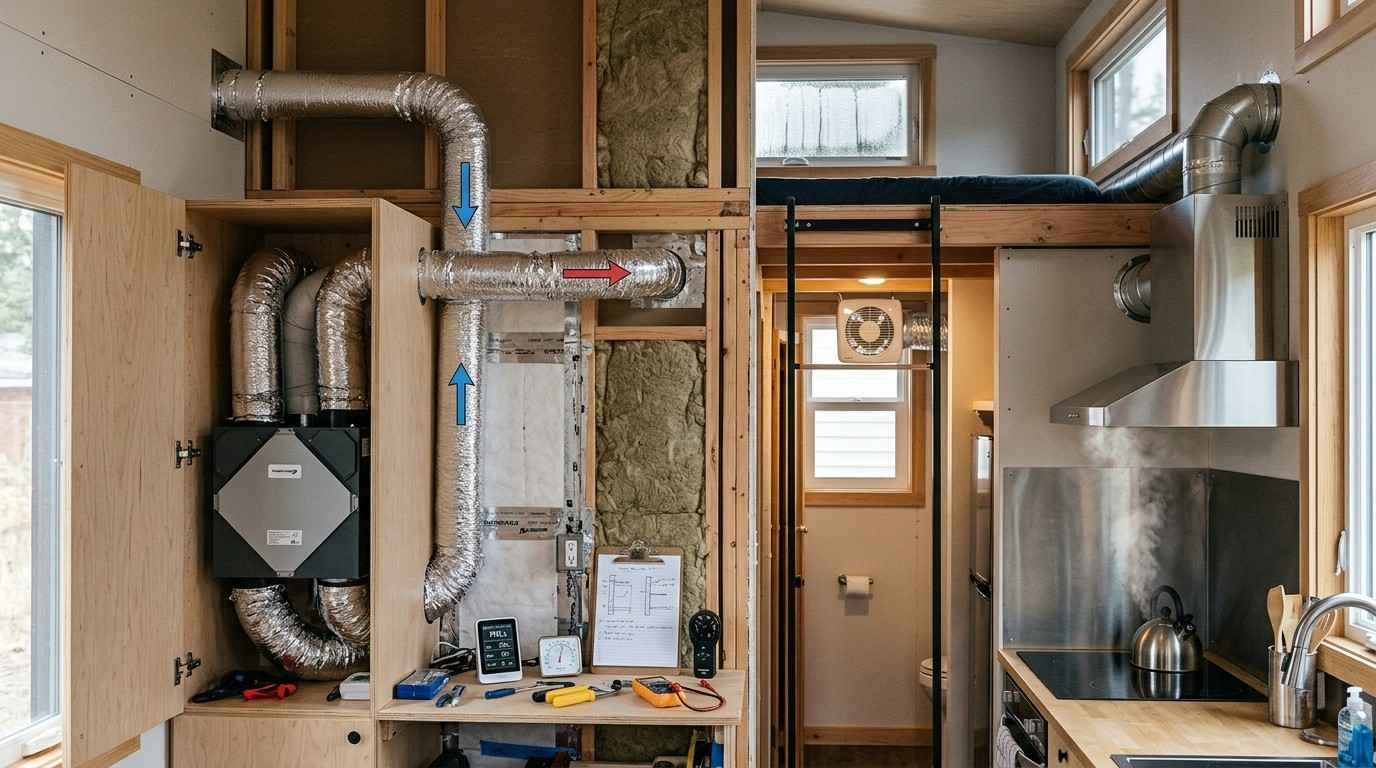

Ventilation, Air Quality, and Moisture Management
This section matters more than any equipment choice. Ventilation is what keeps a tight tiny home healthy instead of moldy.
Why Small Volume Air Goes Stale Fast
A conventional home dilutes indoor pollutants across thousands of cubic feet. A tiny home has almost no dilution capacity. Carbon dioxide from two sleeping occupants climbs measurably within hours in a sealed loft.
I have measured CO2 above 2,000 ppm in tiny home lofts with no ventilation running. That level produces headaches and poor sleep.

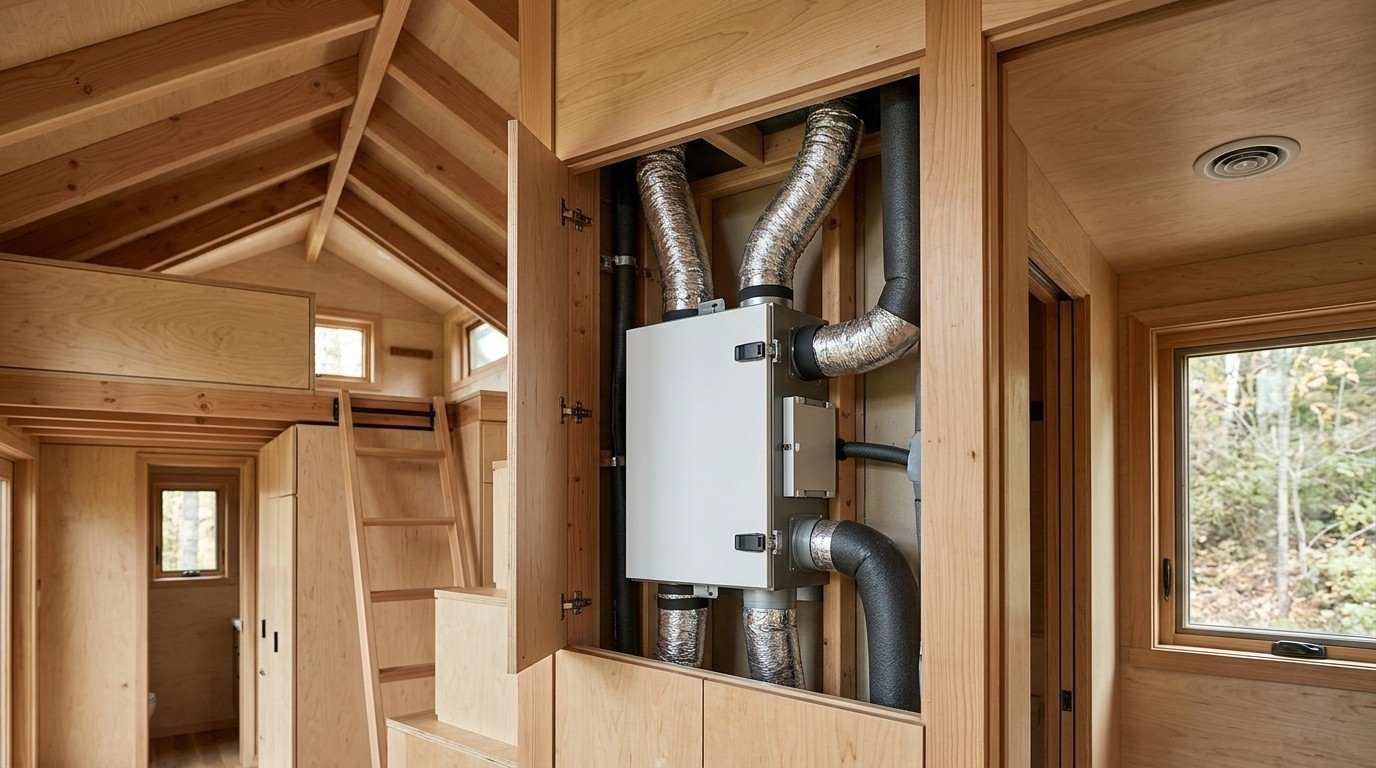

ERV and HRV Systems in Compact Builds
An energy recovery ventilator exhausts stale indoor air, brings in fresh outdoor air, and transfers heat and moisture between the two streams. A heat recovery ventilator does the same without moisture transfer.
Compact units sized for small dwellings now exist, and ASHRAE Standard 62.2 sets the residential ventilation rate baseline that I design to. This is the single upgrade I push hardest on every build.
Spot Ventilation: Bath, Kitchen, and Loft
Bath fans and range hoods handle moisture and cooking pollutants at the source. In a tiny home, the kitchen and bathroom sit within a few feet of the bed, so source capture matters enormously.
I install a properly vented range hood that exhausts outside, never a recirculating filter. Recirculating hoods move grease and steam around the room instead of removing them.
Loft ventilation gets its own attention because heat and moisture stratify upward.
Condensation, Mold, and Vapor Control
Warm humid interior air meeting a cold surface produces liquid water. In tiny homes, those cold surfaces are window glass, metal fasteners, and any spot where insulation is interrupted.
I control this three ways: reduce interior moisture through ventilation, eliminate thermal bridges in the assembly, and manage vapor drive with the right membrane in the right place. Getting the wall assembly and vapor control layers correct prevents damage you cannot see until it is expensive.
The Building Envelope: Insulation, Air Sealing, and Windows
Equipment gets the credit. The envelope does the work. I spend more design time here than on the HVAC hardware itself.
Insulation Types and R-Value Tradeoffs in Thin Walls
Tiny home walls are typically 2×4 or even 2×3 to save weight and width. That leaves 2.5 to 3.5 inches for insulation, so R-value per inch matters more than in a conventional wall.
Closed cell spray foam delivers roughly R-6 to R-7 per inch and doubles as an air barrier and vapor retarder. Rigid polyiso and mineral wool each have their place depending on fire performance, weight, and moisture strategy. I select by assembly, not by favorite product.
Thermal Bridging Through Steel Trailers and Framing
The steel trailer frame conducts heat straight through your floor assembly. Steel conducts heat hundreds of times faster than wood, so every crossmember is a highway for winter heat loss.
I break that bridge with continuous rigid foam below the subfloor and careful detailing at the perimeter. Skipping this step produces cold floors and condensation on steel in humid weather.
Window Specification and Solar Heat Gain
Windows are the weakest thermal spot in any tiny home, and tiny homes are gloriously window-heavy. Dual pane low-E units with a low solar heat gain coefficient cut summer heat gain substantially in inland California zones.
Orientation matters as much as glazing spec. West-facing glass in Fresno needs shading, overhangs, or a lower SHGC than the same window facing north.
Power Supply: Shore Power, Off Grid, and Solar Sizing
Your HVAC choices live or die on available electricity. I always resolve the power question before finalizing equipment.
30 Amp vs 50 Amp Service Limits
A 30 amp shore power connection delivers roughly 3,600 watts total for the entire home. A mini split, a water heater, an induction cooktop, and a dehumidifier running together exceed that easily.
A 50 amp service provides substantially more headroom and changes what I can specify. I map every load against the available service and build in load management where the numbers get tight.
Battery, Inverter, and Generator Pairing
Off-grid heat pump operation requires battery capacity and inverter output that handle compressor startup surge. Soft-start devices reduce that surge and make solar-powered mini splits genuinely workable.
Sizing an off-grid solar and battery system for a tiny home is its own detailed exercise involving daily kilowatt-hours, sun hours by region, and depth of discharge limits. Getting it wrong strands you without heat on the coldest night of the year.
Propane Systems and Safety Requirements
Propane appliances need properly secured tanks, listed regulators, leak-tested lines, and adequate combustion and vent provisions. I install a combined propane and carbon monoxide detector in every home with any gas appliance.
Nothing about propane is casual. The tolerances are tight and the consequences are severe.
Codes, Standards, and Certification in California
Classification determines which rules apply to your home, and that classification affects HVAC requirements directly.
ANSI 119.5, HUD, and Title 24 Context
Most tiny homes on wheels get built to ANSI A119.5, the park model recreational vehicle standard, which covers electrical, plumbing, heating, and fire safety for that category. Homes built as permanent dwellings on foundations fall under the California Residential Code and Title 24 energy requirements instead.
Those two paths carry different insulation, ventilation, and equipment expectations. I confirm the target standard at the start of design.
Park Model vs THOW vs RV Classification
A park model RV, a tiny home on wheels, and a travel trailer are legally distinct things. That distinction affects where you park, whether you can live there full time, and which inspections apply.
I walk every client through classification before we design, because the answer constrains everything after.
Local Jurisdiction and ADU Placement Rules
California law now permits movable tiny homes as accessory dwelling units in many jurisdictions, and the California Department of Housing and Community Development publishes ADU guidance that local agencies interpret in their own ordinances. Local rules on tiny home placement and permitting in California vary city by city.
Utility connection requirements often drive the HVAC decision more than the building code does.
Installation Quality: What Separates a Good Build From a Callback
This is where builder quality becomes visible. Two homes with identical equipment perform very differently based on installation craft.

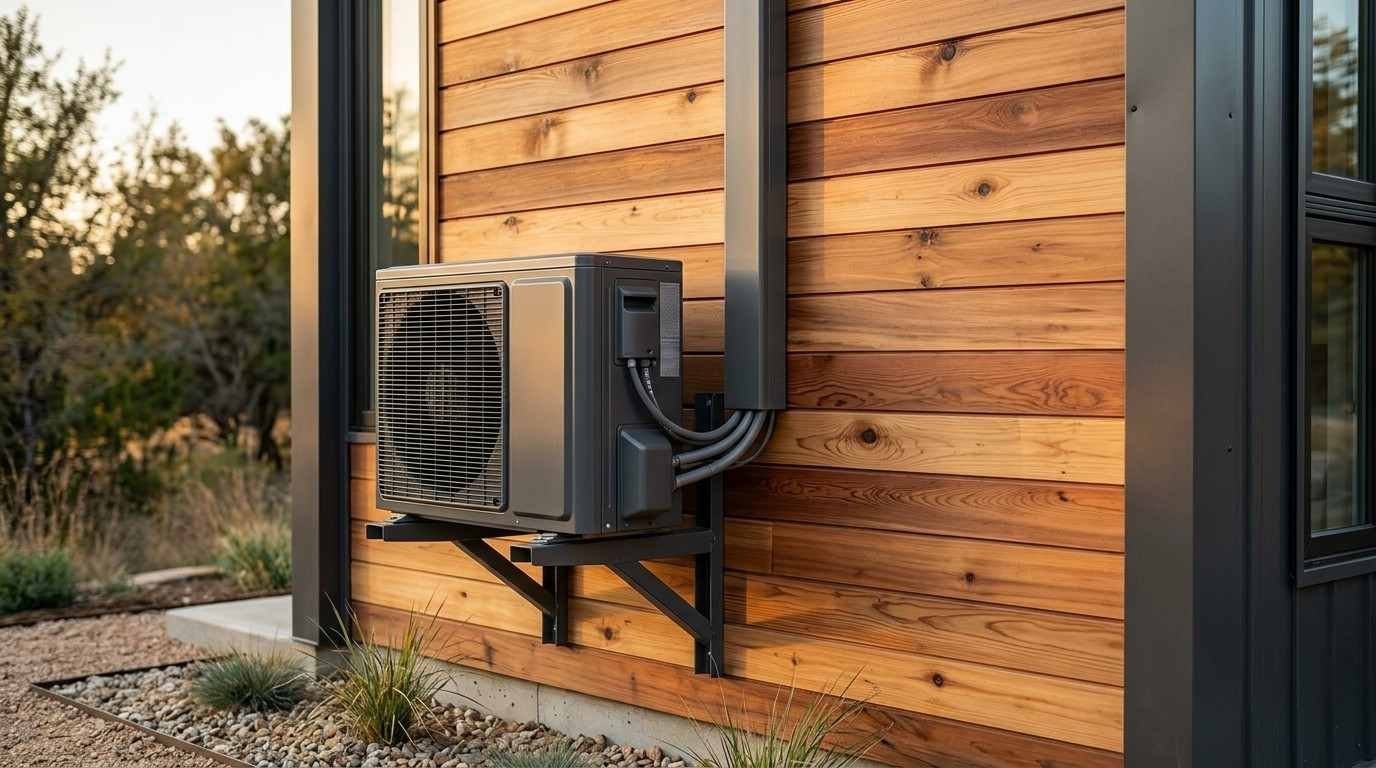

Line Set Routing, Penetrations, and Flashing
Refrigerant line sets must pass through the wall without kinking, with insulation intact on both lines. Every penetration needs proper flashing, sealant compatible with the cladding, and a path that keeps water moving out and down.
I see failures here constantly on other people’s builds. Unflashed penetrations rot sheathing quietly for years.
Condensate Drainage on a Moving Structure
An air conditioner produces liquid water. That water needs a slope, a trap where required, and a discharge point that works whether the trailer sits perfectly level or not.
A condensate line that drains fine in the driveway can back up into the wall at a campsite with a two-degree tilt. I design drainage with tolerance for imperfect leveling.
Vibration, Road Travel, and Mounting Standards
Highway travel subjects equipment to sustained vibration a stationary home never sees. Mounting brackets, refrigerant flare fittings, and electrical connections all loosen without proper securing.
We use vibration isolators, mechanical fasteners into structural members, and torque-verified connections. Then we road-test before delivery.
Commissioning, Charge Verification, and Documentation
Commissioning means verifying the system actually performs as designed. I check refrigerant charge, measure delivered temperature split, confirm ventilation airflow, and test every safety device.
Then I hand over documentation: model numbers, load calculations, wiring diagrams, and maintenance schedules. A builder who cannot produce that paperwork did not verify the work. Understanding what documentation a quality home builder provides gives you a concrete way to compare bids.
Costs, Efficiency, and Long Term Operating Numbers
Cost conversations need both halves: what you pay to install and what you pay every month afterward.
Equipment and Install Cost Ranges
A single-zone mini split with professional installation in a tiny home typically runs $3,000 to $6,000 depending on capacity and cold-climate features. Electric panel heaters land under $500 installed. A listed wood stove with chimney and hearth commonly reaches $2,500 to $4,500.
A compact ERV adds roughly $1,200 to $2,500 installed. I quote these as a package because they interact.
Operating Cost by Fuel Source
Heat pumps deliver two to four units of heat per unit of electricity, which makes them the cheapest heat in most California utility territories. Electric resistance costs roughly three times as much per BTU delivered.
Propane cost swings with market pricing, and the U.S. Energy Information Administration tracks residential propane prices weekly. Wood costs little when you source it yourself and more than propane when you buy it split and delivered.
Maintenance Intervals and Service Life
Mini split filters need cleaning monthly and coils need cleaning annually. ERV cores need periodic washing. Wood stove chimneys need annual inspection and sweeping.
Expect 12 to 15 years from a well-maintained mini split and longer from a wood stove with replaceable parts. Neglected equipment fails in half that time.
How to Choose a System for Your Climate and Lifestyle
The right answer depends on where the home sits and how you live in it. I ask about both before recommending anything.
Full Time Living vs Seasonal and Travel Use
Full time occupancy demands ventilation, dehumidification, and reliable heat through the coldest week of the year. Seasonal use tolerates simpler equipment and accepts occasional discomfort.
Frequent travel favors rooftop units, propane heat, and simple redundant systems. Stationary living favors mini splits and ERVs.
Decision Matrix by California Climate Region
Coastal zones from San Diego to Eureka need modest heat, minimal cooling, and serious moisture control. Inland valleys from Sacramento to Bakersfield need real cooling capacity and shading strategy.
Mountain and high desert parking in the Sierra or Truckee needs cold-climate heat pump performance plus backup heat. I match the equipment to that reality, not to a national average.
Questions to Ask a Tiny Home Builder About HVAC
The answers separate builders who engineer from builders who guess.
Ask for the load calculation in writing. A builder who sized your system by rule of thumb will not have one, and that tells you what you need to know.
Ask what ventilation strategy they specify and why. Ask how they break the thermal bridge at the trailer frame. Ask where condensate drains and what happens when the home sits unlevel.
Then ask for the commissioning documentation from their last three builds. Real answers come fast from builders who do this work properly. Reviewing how to evaluate a home builder’s construction quality gives you a broader framework beyond HVAC alone.
Common Mistakes We See in Tiny Home HVAC
Oversizing tops the list. A 12,000 BTU mini split in a 200 square foot home short cycles forever and never dehumidifies.
Skipping mechanical ventilation comes second. Owners discover it when black spots appear behind the bed.
Unvented propane heaters rank third, and they are genuinely dangerous in a sealed small space. Unflashed wall penetrations rank fourth and cause the most expensive hidden damage.
Last, and most frustrating, is spending on premium equipment while accepting a leaky envelope. Great gear cannot compensate for bad building.
Conclusion
You now understand tiny home HVAC as one integrated system: envelope, load calculation, heating, cooling, ventilation, power supply, code path, and installation quality.
Each of those dimensions goes deeper in our dedicated resources, and every one connects back to the same principle that build quality determines comfort.
We design and build these systems every week, and we would love to plan yours. Reach out to Tiny Home Builders California to start your build.
Frequently Asked Questions
What size mini split does a tiny home on wheels need?
Most well-insulated tiny homes need 6,000 to 9,000 BTU. I run a load calculation for every build because envelope quality changes that number significantly.
Can a mini split run on solar power in a tiny home?
Yes. A soft-start device plus adequate battery capacity and inverter output makes solar-powered mini split operation practical for off-grid tiny homes.
Is propane or electric heat better for a tiny home?
Electric heat pumps cost less to operate in most California areas. Propane wins for off-grid independence and works well with sealed combustion venting.
Do tiny homes on wheels need mechanical ventilation?
Absolutely. Tight small envelopes trap moisture and carbon dioxide fast. I install an energy recovery ventilator plus spot exhaust in every home we build.
How much does HVAC cost for a tiny home on wheels?
A complete system typically runs $4,000 to $9,000 installed, covering heating, cooling, and ventilation. Equipment choice and climate zone drive the range.
Can I use a wood stove in a tiny home on wheels?
Yes, with a listed small stove, proper clearances, a hearth pad, Class A chimney, and dedicated combustion air. It demands floor space and daily attention.
What HVAC code applies to tiny homes on wheels in California?
Most follow ANSI A119.5 as park model RVs. Homes on permanent foundations follow the California Residential Code and Title 24 energy standards.
